   Vertical Machining Center

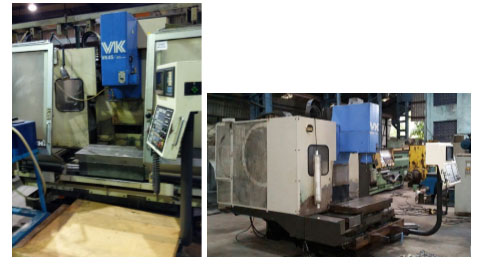

35) HITACHI SEIKI Vertical Machining Center

Model : VK45 , Table Size 1120 x 485 mm, Table Max Load 750 KG,
X-Axis travel = 760mm, Y-Axis = 450mm, Z-Axis = 450 mm,
Spindle Speeds : 60 - 6000 rpm, Spindle Taper ISO 40, with Seicos CNC Control , ATC : 20 pieces, Floor Space : - 124" x 91" x 99" H. Made in Japan ,
Imported from U.K . USED VMC . Presently in our warehouse in NAVI MUMBAI

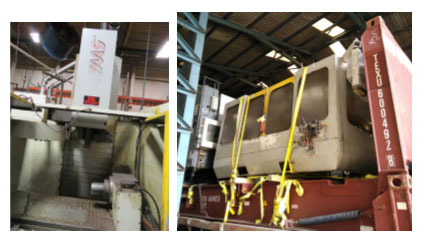

36) HAAS VMC with 4th axis

MODEL VF3-C, Travel: X-Axis Travel: 1016mm, Y-Axis Travel:  508mm, Z-Axis Travel : 635mm
Spindle Taper: CAT 40, 450 X 1200mm Table. ATC : 16 , Spindle Speed 7,500 RPM,
Rapid Traverse Rates: 710 IPM, Machine in running. Check photos and video. Made in USA ,
Imported from USA . USED VMC . Presently in our warehouse in NAVI MUMBAI .
Running Video : https://youtu.be/t_YesXvuTXg

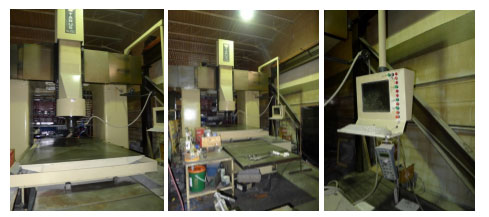

37) 5-axis Double Column VMC .  Make : TARUS

Model : HS-8412/48
HIGH SPEED DUAL COLUMN CNC MILL WITH 3 + 2 HEAD, 1994 , CNC CONTROL: OMTRONIX,
table size.: 1830mm x 3048mm, table capacity: 22.7 tons, distance between columns.: 2133mm max.
table to spindle face: 1016mm, cross travel (y): 2413mm, longitudinal travel (x): 3048mm,
vertical travel (z): 787mm, cutting head rotation (a axis).: 360 degrees,
cutting head angle (b axis).: 0 - 45 degrees, spindle speeds (direct drive).: 0 - 10,000 rpm,
spindle DRIVE: 10 hp cont.(14.7 hp 30 min), spindle taper..: cat #40, max cut feed rate: 400" / min,
max rapid traverse: 500" / min, equipped with: cooled spindle & spindle motor, cooled 2.25" ball screws,
z axis box ways, a & b axes cnc positioned head, hydr./mech. lock/unlock, approx. dimensions 10’ high,
10’ long, 7’ wide. approx. weight : 23 tons, MADE IN USA. IMPORTED FROM USA. Arriving in our warehouse
 in NAVI MUMBAI .

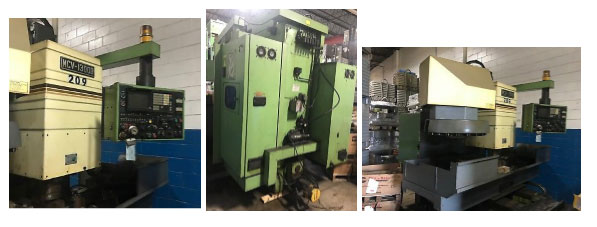

38) Leadwell MCV 1300D Vertical Machining center

X-axis travel: 1320 mm; y-axis travel: 673 mm; z-axis travel: 610 mm; Table: 1,417 mm x 600 mm, Fanuc 0M CNC Control; spindle taper: #50; spindle speeds: 3000 RPM Max, 2 speed geared head, Arriving from USA.
USED VMC for sale in our warehouse in Navi Mumbai.
