    GRINDING MACHINES

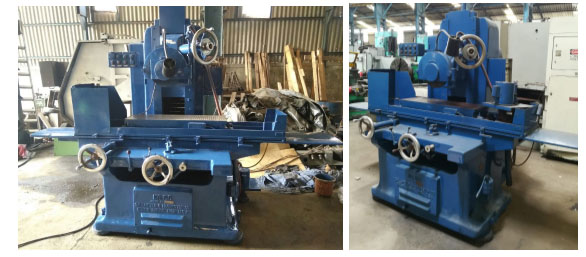

8)  DOALL SURFACE GRINDER

Model : VS-618, Magnet : 460mm x 160mm 6" x 18" doall (made in usa) hydraulic surface grinder, longitudinal table travel - 20" longitudinal table speed -5' to 60' fpm, cross travel - 7", table reversal - 1/64" to 1/4", max. work height under 7" wheel -12" , standard grinding wheel -7"d x 1/2"w x 1-1/4" approx. dimensions -68" x 44" x 66" h, hydraulic longitudinal & cross feeds, 6" x 18" fine-division electro-magnetic chuck,  doall variable hold neutrofier control,
downfeed handwheel moves w/wheelhead, used surface grinding machine

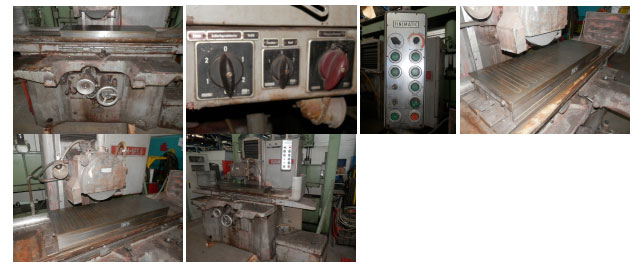

9) Blohm Horizontal Surface Grinding Machine

Model : HFS 9, grinding length: 900 mm, grinding width: 400 mm, with magnetic plate used. Table type SE 30/90, 110/220 V, 1.6/0.8 A, Table clamping surface: 900 x 300 mm , Workpiece height - max.: 600 mm , max. table load: 500 kg , Spindle speed: 1400 / 2800, Total power requirement: 11-13 kW , Machine weight approx. 3.9 t , Space requirement approx. 3800 x 2000 H 2300 mm ,
IMPORTED BY US FROM GERMANY ,  USED SURFACE GRINDING MACHINE

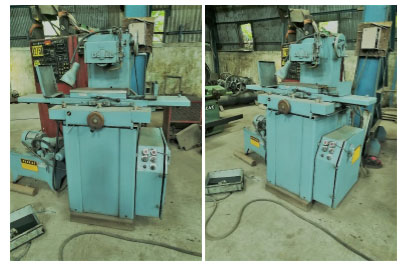

10) GALLMEYER & LIVINGSTON

Hydraulic Surface Grinding Machine
Model: 55, Table : 900 x 300mm, Grinding Width = 400mm , Length = 900mm Electromagnetic Chuck,
with Coolant , USED SURFACE GRINDING MACHINE
Running Video - https://youtu.be/5DMo4u_cwmk

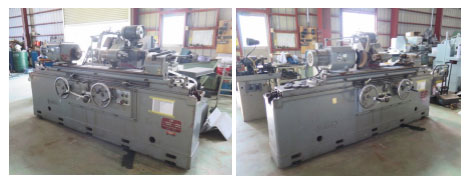

11) TOYODA UNIVERSAL CYLINDRICAL GRINDER

Model :  GU-28-100 ,  Ø-285mm dia. , 1020mm between center, General Specifications : Max. Swing 320mm, Distance between centers 1020mm,  Grinding wheel size 355mm, Wheel head swivel either direction 30 deg.,
Workhead swivels counter clockwise 90 deg., Workhead swivels clockwise 30 deg., Table speeds variable 2 to 158 IPM, Wheelhead drive 5 HP A.C., Workhead drive 1 HP A.C., Hydraulic drive 1 HP A.C., Machine dimensions 115"x 68"x 60", Weight 8,400 lbs., Equipped With, Automatic plunge feed cycle with spark out, Coolant system, Hydraulic Unit, Digital readout, Importing from USA. USED CYLINDERICAL GRINDING MACHINE ,
Running Video : https://www.youtube.com/watch?v=FFGsltyW_8M

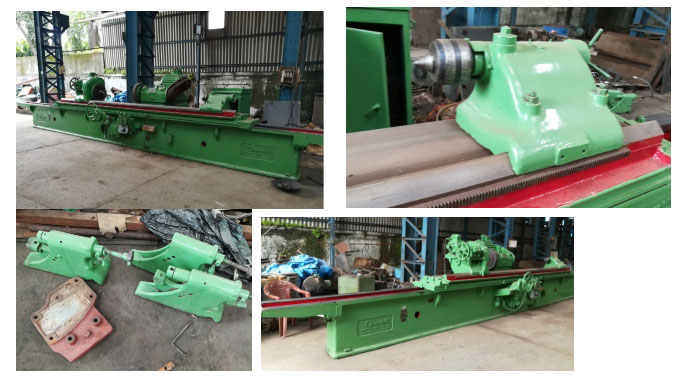

12) CHURCHILL OD Cylinderical Grinder

3600mm Hydraulic Cylindrical Grinding Machine, Imported by us from Europe, Model D , Swing : 510mm, Length : 3658 mm , Spare Grinding Wheel, Swivel Table. USED CYLINDERICAL GRINDING MACHINE.
Running Video : - https://www.youtube.com/watch?v=h7Z8LIgLt-k


13) BLANCHARD Rotary Surface Grinding Machine

400 mm dia, 10 HP, 3-Phase Drive Motor.USED ROTARY SURFACE GRINDER
